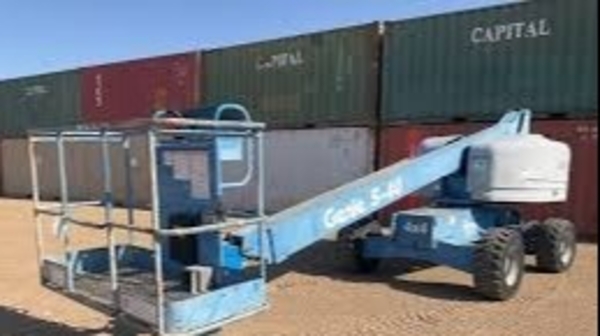

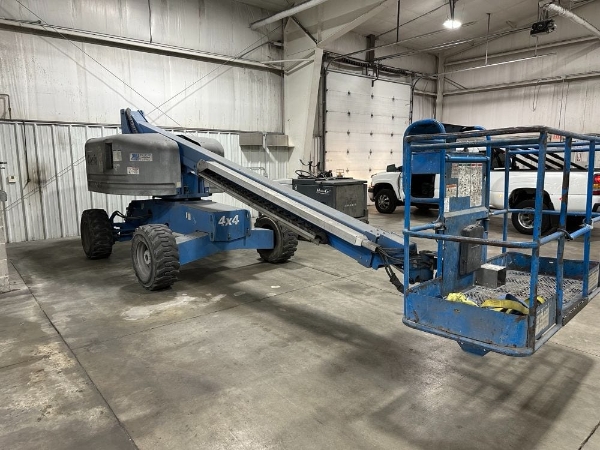

2005 Man Lift
Maximum working height: 46 ft Maximum platform height: 40 ft Maximum horizontal reach: 31 ft 8 in Below-ground reach: 1 ft Platform dimensions: 8 ft × 3 ft or 6 ft × 2 ft 6 in Overall width: 7 ft 6 in Overall height (stowed): 8 ft 2 in Overall length: 24 ft 3 in Wheelbase: 7 ft 3 in Ground clearance: 12.5 in Lift capacity (unrestricted): 500 lb Platform rotation: 160° hydraulic Turntable rotation: 360° continuous with approximately 2 ft 10 in tail swing Drive speed (stowed): 4.8 mph Drive speed (raised): 0.68 mph Gradeability: 30% (2WD) / 40% (4WD) Engine: Deutz diesel, 3-cylinder, approximately 49 hp Fuel tank capacity: 35 gal Hydraulic tank capacity: 38 gal
We support both short and long hauls across state lines. Transportation is not included in your rental rate. Once an order is placed you will receive a quote within 1 business day.
Equipment can be used for 160 hours per month throughout the length of the rental. Total usage is calculated cumulatively over the entire rental.
Any hours used over the 160-hour cumulative monthly limit will be charged at the end of the rental and will appear on your final statement.
You are free to extend a rental as needed.
To receive a full refund, cancellations must be made at least 24 hours before the first machine in the order is picked up. Charges may apply for cancellations made after this period.
