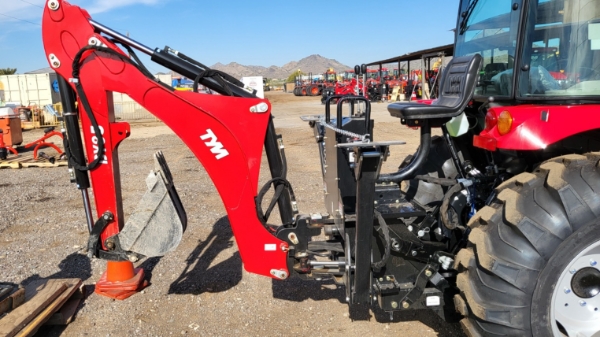

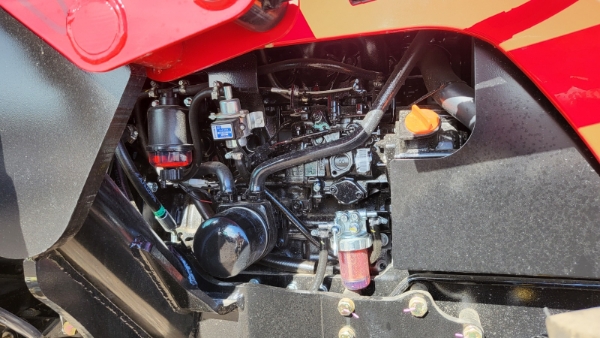

Vehicle Details Year: 2022 Make: TYM Tractors Model: T574HC CAB Color: Red Condition: New Options Added Hydrostatic Transmission Factory Cab Front End Loader & Backhoe Industrial Tires Loader Specifications Maximum Lift Height to Pivot Pin: 110.2” Maximum Lift Height Under Lever Bucket: 101” Clearance w/ Bucket Dumped: 84.4” Reach at Maximum Lift Height: 17.6” Maximum Dump Angle: 45 Degrees Reach w/ Bucket on Ground: 70.9 Degrees Maximum Rollback Angle: 40 Degrees Digging Depth: 4.4” Overall Height in Carry Position: 50.5” Depth of Attachment: 20.9” Height of attachment: 20.9” Length of Attachment: 27.2” Lift Capacity to Maximum Height: 2,790 lbs. Breakout Force at Ground Level: 5,316 lbs. Bucket Rollback Force at Ground Line: 4,356 lbs. Relief Valve Setting: 2,489 psi. Rated Flow: 7.7 GPM. Lift Cylinder: 2.4” x 1.4” Bucket Cylinder: 2.4” x 1.4” Bucket Width: 72” Boom Raising Time: 6.4 Sec. Boom Lowering Time: 4.2 Sec. Bucket Rollback Time: 3.8 Sec. Bucket Dumping Time: 5.7 Sec. Industrial Tire Specifications Front R4: 12x16.50NHS 6PR Rear R4: 16.9-24 8PR Tire Weight: 798 lbs. Engine Kukje A2300T3 Turbocharged 4-Cylinder Diesel 55hp @ 2600 RPM PTO: 44.7HP Powertrain & Specs Power Steering w/ Dual-Gear Pump Wet Disc Brakes Selectable Four Wheel Drive Category I Three Point Hitch, 3,314 lbs Capacity 540 RPM Independent PTO 17 Gallon Fuel Capacity 70A Alternator, 12V System Weights Tractor: 4,233lbs Loader: 1,120lbs Total Weight: 5,353lbs Liquid Ballast (optional): 1,342lbs Total Weight with Ballast: 6,695lbs

• Auger 12in
• Auger 9in
• Box Blade 88"
• Pallet Forks
• Spade Nose Bucket
• JCB1CXT JCB
