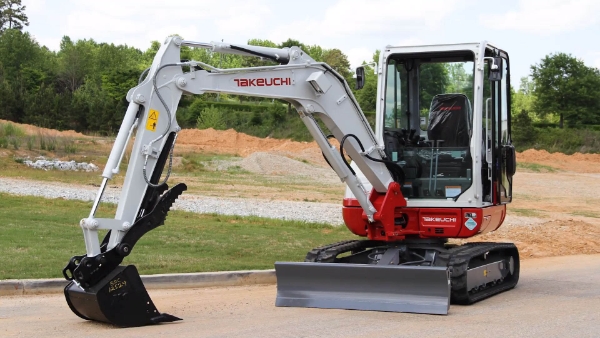

OROPS (Open Cab), Blade, Bucket------Operating Weight Canopy: 7,418 lb Cab: 7,639 lb Maximum Bucket Breakout Force: 9,127 lb Maximum Arm Digging Force: 3,889 lb Arm Length: 4 ft 9.0 in Slew Speed: 9.3 rpm Traction Force: 9,112 lb Ground Pressure Canopy: 4.4 psi Cab: 4.6 psi Travel Speed Low Range: 1.7 mph High Range: 2.6 mph Engine Make / Model: Yanmar / 3TNV88F Displacement: 100.0 cu in Horsepower @ 2,400 rpm: 24.4 hp Maximum Torque @ 1,440 rpm: 68.0 ft-lb Hydraulic System Total Hydraulic Flow: 28.6 gpm Auxiliary Flow - Primary Circuit: 15.8 gpm Hydraulic System Pressure: 3,553 psi Fluid Capacities Engine Lubrication: 5.0 qt Cooling System: 4.2 qt Fuel Tank Capacity: 12.2 gal Hydraulic Reservoir Capacity: 9.2 gal Hydraulic System Capacity: 18.0 gal Dimensions Maximum Reach: 17 ft 2.9 in Maximum Reach at Ground Level: 16 ft 10.0 in Maximum Digging Depth: 10 ft 7.8 in Maximum Vertical Digging Depth: 8 ft 2.2 in Maximum Dig Height: 16 ft 5.2 in Maximum Dumping Height: 11 ft 9.5 in Front Swing Radius: 6 ft 6.9 in Front Swing Radius with Boom Offset: 5 ft 5.4 in Tail Swing Radius: 4 ft 4.4 in Transport Length: 16 ft 0.9 in Transport Height: 8 ft 2.8 in Ground Clearance: 11.6 in Undercarriage Length: 6 ft 11.1 in Track Width (Rubber): 11.8 in Undercarriage Width: 5 ft 2.2 in

• General Purpose Bucket 12"
• General Purpose Bucket 24"
